Jan 9, 2024Here are some quick reference bend multipliers for common angles: 90-degree bend: Bend multiplier = 1; 45-degree bend: Bend multiplier = 0.707 (approximately) 30-degree bend: Bend multiplier = 0.5 (approximately) Remember, these bend multipliers are approximate values and may vary depending on the type and size of conduit you are working with.
2 Pack of Electrician Conduit Multiplier Chart Stickers – Etsy
After watching this video, you should be able to calculate ANY multiplier on an offset without the use of a chart. This formula works on ALL conduit types an
Source Image: scribd.com
Download Image
The multiplier method, even if not perfect, is fine for small conduit or stuff thats hidden. You can usually get it close enough to make it work. If you have to be acurate, the best way to bend offsets is to field bend it. Field bending is described in a some books.
Source Image: issuu.com
Download Image

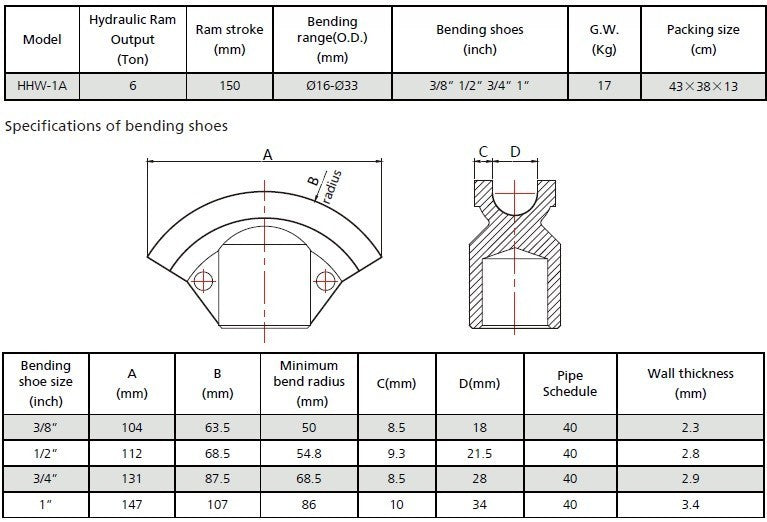

Hydraulic Pipe Bender, 6ton (3/8″ – 1″) (W-1A) – EZ-Tools USA LLC. How to Bend an Offset in Conduit. An offset is a bending technique that turns a straight conduit into a Z-shape, which allows it to avoid obstacles and change elevation. Calculate and mark where the conduit will be bent. Line up the bender’s arrow (B) with the first mark and with the tube on the ground, make a 45° bend. Turn the bender upside
Source Image: homedepot.com
Download Image
Conduit Bending Multiplier Chart
How to Bend an Offset in Conduit. An offset is a bending technique that turns a straight conduit into a Z-shape, which allows it to avoid obstacles and change elevation. Calculate and mark where the conduit will be bent. Line up the bender’s arrow (B) with the first mark and with the tube on the ground, make a 45° bend. Turn the bender upside Line up the start point symbol on the bender (often an arrow) with the line you made in step 3. Apply pressure to the heel end of the bender with your foot, using the handle as a lever, until you reach the 90 degree position. Remove the conduit from the bender and check the angle.
Milwaukee 1 in. EMT Aluminum Conduit Bender with 100 ft. Polyester Fish Tape with Non-Conductive Tip 48-22-4072-48-22-4165 – The Home Depot

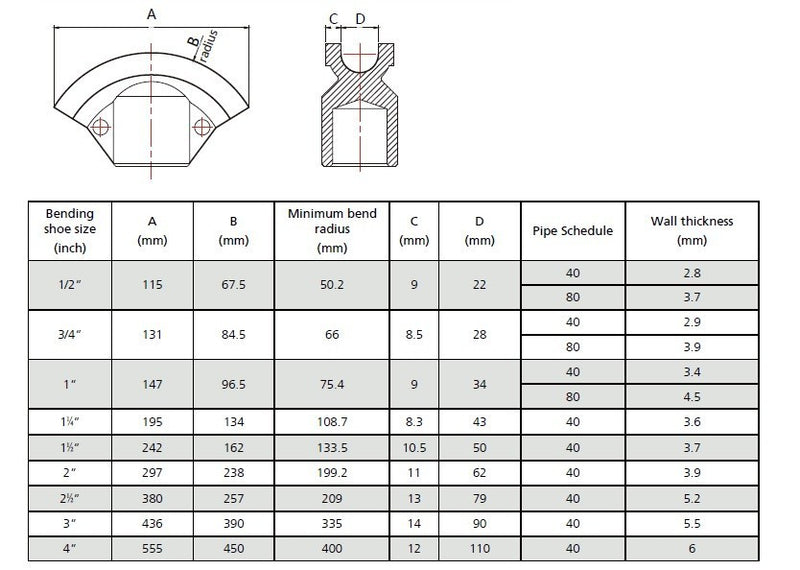

Follow the steps from the 90° Stub-Up section to create the ideal bend for the connection on the first side. From the back edge of the 90° stub-up bend, measure the distance found in step 1 and make your mark on the conduit. Place the bender on the conduit with the bender’s hook facing the free end of the tube to be. Hydraulic Pipe Bender with Separable Pump (1/2″ – 2″) 13Tons (W-2F-MP) – EZ-Tools USA LLC.
Source Image: ez-tools.us
Download Image
Milwaukee 48-22-4071 3/4 in. Aluminum Conduit Benders Follow the steps from the 90° Stub-Up section to create the ideal bend for the connection on the first side. From the back edge of the 90° stub-up bend, measure the distance found in step 1 and make your mark on the conduit. Place the bender on the conduit with the bender’s hook facing the free end of the tube to be.
Source Image: greatlakespowertools.com
Download Image
2 Pack of Electrician Conduit Multiplier Chart Stickers – Etsy Jan 9, 2024Here are some quick reference bend multipliers for common angles: 90-degree bend: Bend multiplier = 1; 45-degree bend: Bend multiplier = 0.707 (approximately) 30-degree bend: Bend multiplier = 0.5 (approximately) Remember, these bend multipliers are approximate values and may vary depending on the type and size of conduit you are working with.
Source Image: etsy.com
Download Image
Hydraulic Pipe Bender, 6ton (3/8″ – 1″) (W-1A) – EZ-Tools USA LLC. The multiplier method, even if not perfect, is fine for small conduit or stuff thats hidden. You can usually get it close enough to make it work. If you have to be acurate, the best way to bend offsets is to field bend it. Field bending is described in a some books.
Source Image: ez-tools.us
Download Image

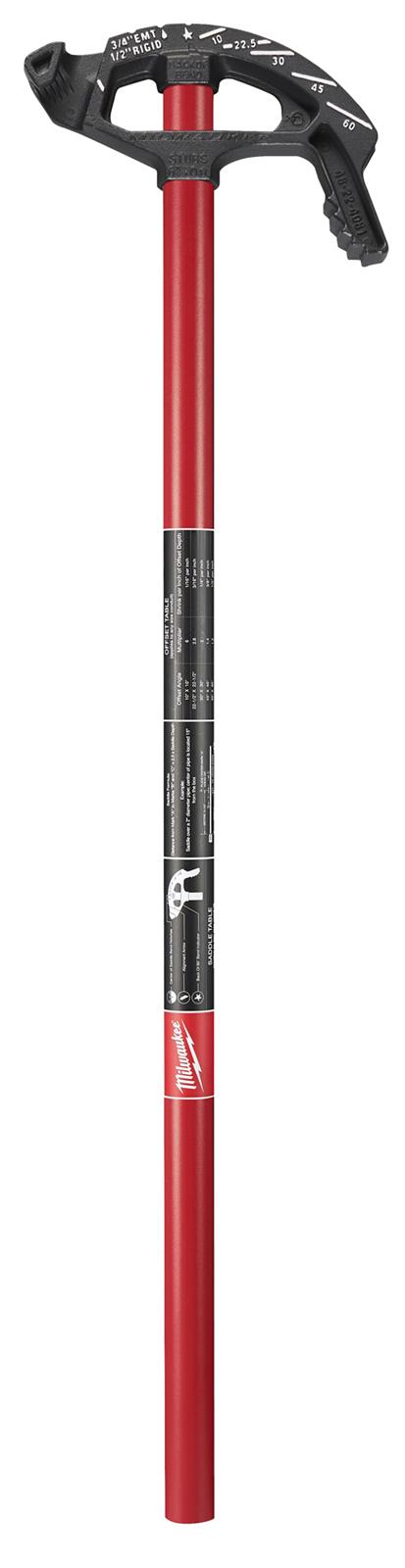

Milwaukee Tool 48-22-4081 Milwaukee EMT Conduit Benders | Summit Racing Hand Benders. Every electrician should have their own set of hand benders, to include at a minimum a bender for ½” EMT, one for ¾” EMT (the ¾” will also bend ½” rigid pipe). If possible, a bender for 1″ EMT (will bend ¾” rigid as well) is also recommended even though many shops will provide this.
Source Image: summitracing.com
Download Image

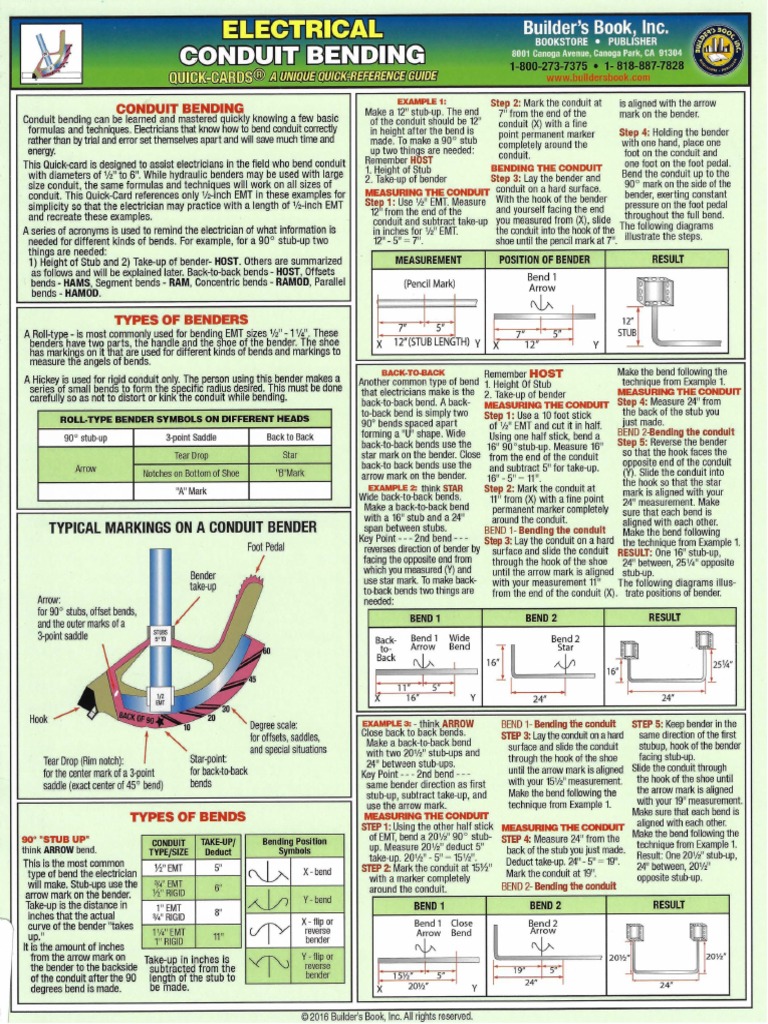

Conduit Bending Cheat Sheet Card – Quick Reference Chart For Electrical Engineers – Formula Guide 3.5” x 2.25”, Conduit Fittings – Amazon Canada How to Bend an Offset in Conduit. An offset is a bending technique that turns a straight conduit into a Z-shape, which allows it to avoid obstacles and change elevation. Calculate and mark where the conduit will be bent. Line up the bender’s arrow (B) with the first mark and with the tube on the ground, make a 45° bend. Turn the bender upside
Source Image: amazon.ca
Download Image
2 Pack of Electrician Conduit Multiplier Chart Stickers – Etsy Line up the start point symbol on the bender (often an arrow) with the line you made in step 3. Apply pressure to the heel end of the bender with your foot, using the handle as a lever, until you reach the 90 degree position. Remove the conduit from the bender and check the angle.
Source Image: etsy.com
Download Image
Milwaukee 48-22-4071 3/4 in. Aluminum Conduit Benders
2 Pack of Electrician Conduit Multiplier Chart Stickers – Etsy After watching this video, you should be able to calculate ANY multiplier on an offset without the use of a chart. This formula works on ALL conduit types an
Hydraulic Pipe Bender, 6ton (3/8″ – 1″) (W-1A) – EZ-Tools USA LLC. Conduit Bending Cheat Sheet Card – Quick Reference Chart For Electrical Engineers – Formula Guide 3.5” x 2.25”, Conduit Fittings – Amazon Canada Hand Benders. Every electrician should have their own set of hand benders, to include at a minimum a bender for ½” EMT, one for ¾” EMT (the ¾” will also bend ½” rigid pipe). If possible, a bender for 1″ EMT (will bend ¾” rigid as well) is also recommended even though many shops will provide this.
